Architectural Floor Planning and Space Optimization
A solid floor plan is the difference between a cramped house and one that breathes. We focus on layouts that maximize your carpet area and make every square inch functional, whether it's a tight urban plot or a spacious duplex.

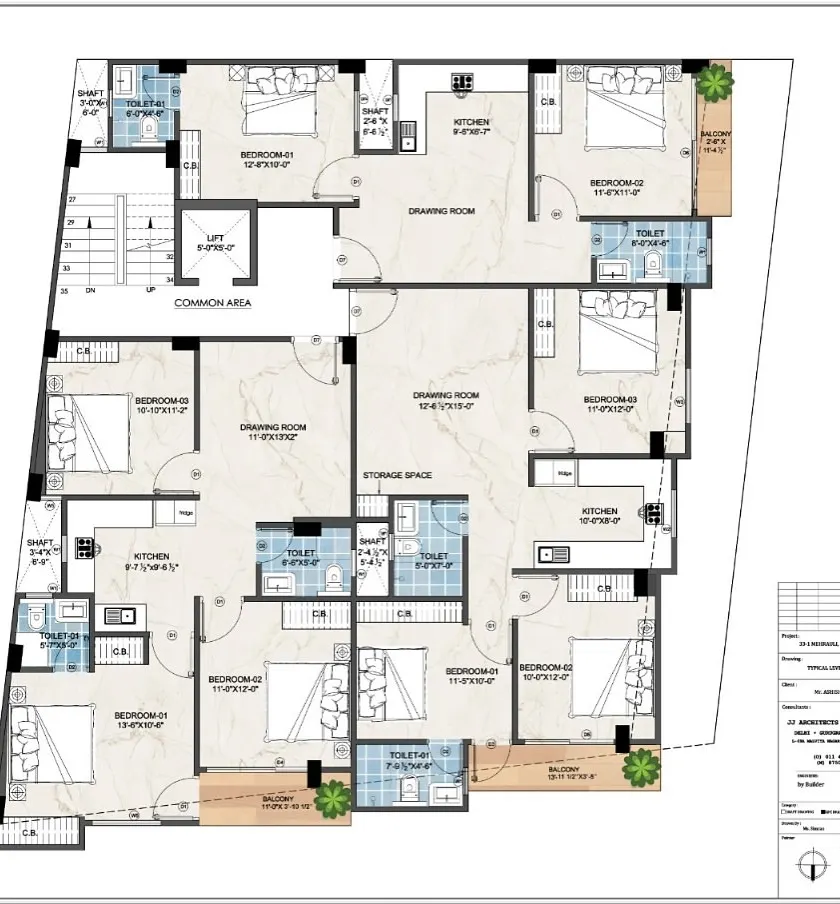

This is the floor plan for a 500 sq. yard G+6 apartment building on an irregular plot. Our plan successfully incorporates multiple compact flats, demonstrating our expertise in space optimization under challenging conditions.
A 3BHK builder floor plan option for a standard rectangular plot in Delhi. This layout features an open-plan drawing and dining area, three bedrooms with attached toilets, and balconies on both ends.

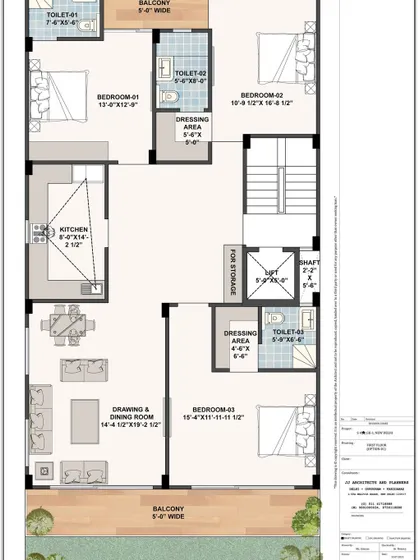

A second layout option for the same builder floor, this time with dressing areas added to two of the bedrooms. We provide multiple options to help clients choose the best fit for their lifestyle.

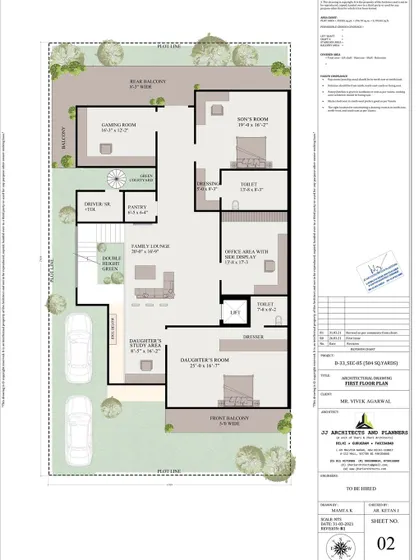

The first-floor plan for a 264 sq. yard residential duplex in Faridabad. This level includes a family lounge, multiple bedrooms, and a dedicated office area, all planned for comfort and privacy.

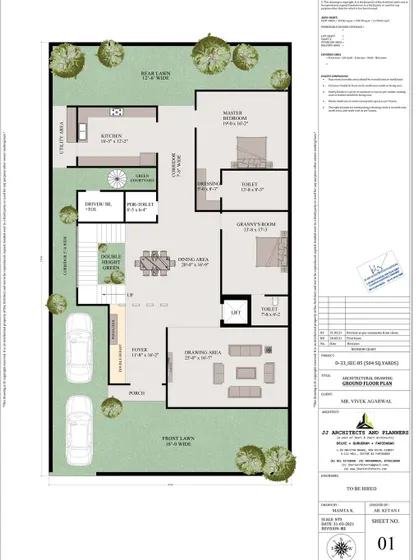

The ground floor plan for the same Faridabad duplex. It features a spacious drawing and dining area, a master bedroom, and a large kitchen, with clear circulation and connection to the front and rear lawns.

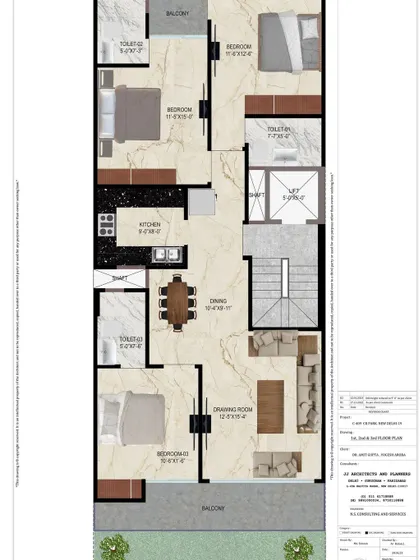

A 3BHK furniture layout plan for a 160 sq. yard builder floor in CR Park. This colored plan helps clients visualize how their furniture will fit and how the space will flow.

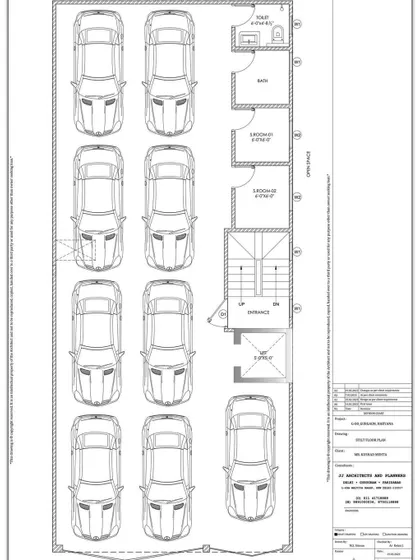

The stilt parking plan for a duplex in Gurgaon. We focus on maximizing car parking space, a crucial requirement in urban areas, without compromising on structural integrity or access.

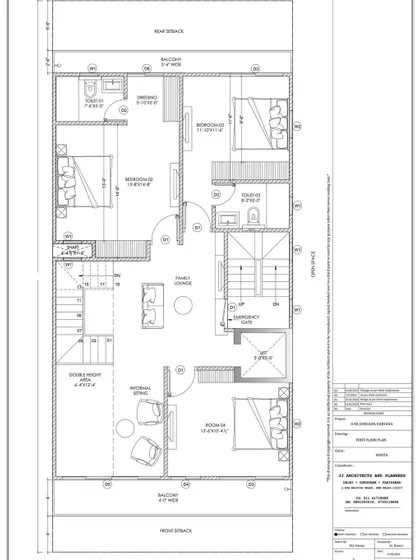

The first-floor plan for the Gurgaon duplex. This layout includes three bedrooms and a central family lounge, showing efficient planning for a multi-generational family home.

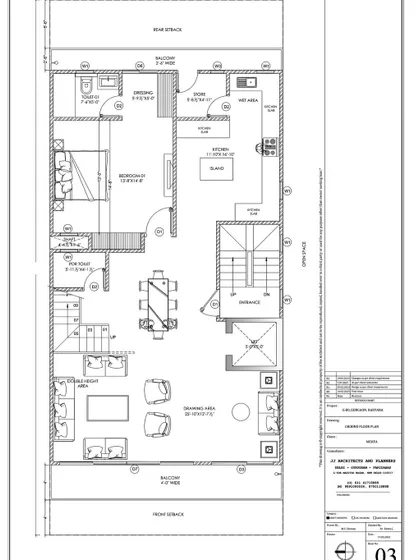

The ground floor plan for the Gurgaon duplex, featuring a large drawing area, a dining space, and a bedroom. The plan clearly defines public and private zones within the home.
The typical floor plan for a 355 sq. yard builder floor project. This layout accommodates four bedrooms, each with an attached bathroom, showing our ability to design for high-density residential needs.
About The Blueprint: Space Optimization & Planning
We don't just draw lines on paper; we engineer them. Take our stilt parking layouts: we calculate the precise turning radius and column placement to maximize car count, ensuring you aren't left with dead space or unusable corners. It is the practical details like this—where furniture flow meets structural load-bearing—that make a floor plan truly livable.
More Than Just a Layout
Many people think a floor plan is just about where the walls go. In our experience across 100+ projects in Delhi NCR, a real plan is about infrastructure and efficiency. We map out the MEP (Mechanical, Electrical, and Plumbing) paths early, so you don't end up with a sewage pipe running through your living room or a column blocking your main entrance.
Why Our Planning Works
- Site-Specific Logic: An irregular plot in Mehrauli needs a completely different approach than a standard rectangular plot in Gurgaon. We adjust for sunlight, wind direction, and existing neighboring structures to make sure you get natural light without sacrificing privacy.
- Structural Integration: We don't hand off a 'pretty' plan that requires a structural engineer to destroy later. Our team handles the structural planning—column positioning and beam placement—simultaneously with the room layout.
- Multiple Perspectives: You will never see just one option. We iterate on furniture placement, Vastu preferences, and storage requirements so you can choose the layout that fits your actual day-to-day life, not just a theoretical one.
The Process
Whether you are planning a builder floor or a multi-story duplex, our process stays the same:
- Site Analysis: We evaluate the plot dimensions, FAR (Floor Area Ratio) limits, and setback requirements.
- Zoning: Defining public and private zones to ensure the house feels open but still offers privacy in bedrooms.
- Technical Drawings: We provide detailed GFC (Good for Construction) drawings, including switchboard layouts and plumbing routes, so your contractor knows exactly what to do.
Ultimately, if a space doesn't work practically, the design is a failure. We focus on the math and the movement, and the beauty follows naturally.
Jhari & Jhari Architects
I’m Ketan Jhari. At our studio, we don't believe in designs that look good on paper but fail on site. We apply the same technical discipline to your home that we use for high-end retail projects, ensuring your floor plan is practical, Vastu-compliant, and built without wastage.
