Prefabricated Outdoor Structures
We build custom prefabricated rooftop rooms and lounges using lightweight steel frames, installed in 30 days with minimal disruption and no heavy brickwork.
Pricing Guide
Insulated Rooftop Glasshouse
Structural & Shell
- Framework: Heavy-duty Hollow Section MS Steel or Light Gauge Steel Framing (LGSF) designed for high-altitude wind loads.
- Protection: 2-coat epoxy primer and PU paint finish on exposed steel for rust resistance.
- Roofing: 50mm to 75mm PUF (Polyurethane Foam) Insulated Sandwich panels for significant heat reduction.
- Waterproofing: Chemical anchoring with grouting and wall-joint flashing.
Glazing & Facade
- Glass Specs: Double Glazed Units (DGU) comprising outer 6mm toughened glass, 12mm air gap, and inner 6mm glass for thermal/sound isolation.
- Framing: Slim-profile aluminum or UPVC framing in wood or matte black finish.
- Openings: Includes one large sliding door system and ventilation windows.
Interiors & Logistics
- Ceiling & Floor: Gypsum or WPC fluted panel false ceiling; raised floor system with WPC Decking or Vitrified tiles.
- Electricals: Concealed wiring, copper AC piping provision, and COB spot-lighting points.
- Hoisting: Crane charges for lifting heavy materials up to 4 floors included.

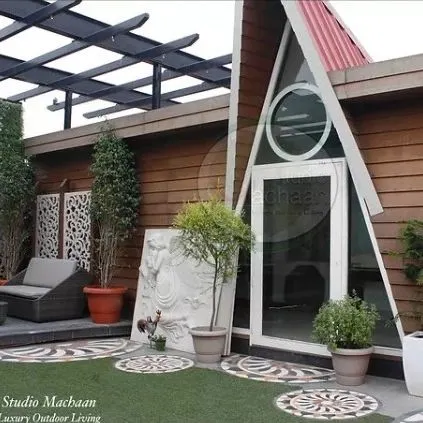

Prefabricated Cottage & Home Office
Structure & Insulation
- Core: Prefabricated Mild Steel (MS) structural grid.
- Wall Composition: Multi-layered system with Cement Fibre Board (External), Rockwool/Glasswool insulation (Density 48kg/m3) for soundproofing, and Gypsum Board (Internal).
- Roof: Shingles or architectural roofing sheets suitable for A-frame or flat designs.
Exterior Facade
- Cladding: Extensive use of WPC (Wood Plastic Composite) Louvers, HPL sheets, or natural stone tile cladding.
- Design: Architectural elements like extended overhangs and geometric window shapes.
Interior Fit-Outs
- Finishes: Premium plastic emulsion paint with smooth wall punning.
- Flooring: AC4 grade wooden laminate flooring or heavy-duty SPC flooring.
- Utilities: Pre-planned plumbing piping and drainage layout integration for toilets or kitchenettes (fixtures at actuals).

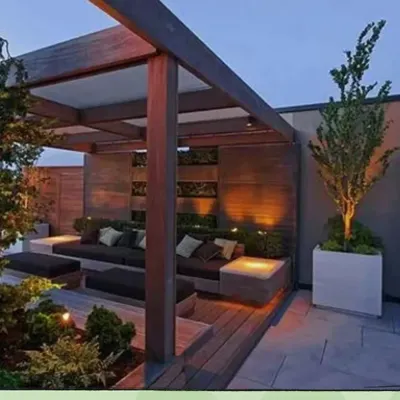

Semi-Covered Pergola & Deck
Structure
- Material: Heavy MS Box sections fabricated to mimic the look of timber beams.
- Finish: Faux-wood grain hand-painted finish or premium matte powder coating.
- Roofing: 10mm Toughened Glass or UV-protected Multi-wall Polycarbonate sheets for rain protection.
Flooring Base
- Platform: Raised metal framework to level the terrace floor.
- Surface: WPC (Wood Plastic Composite) or IPE natural wood decking using a screw-less clip-on system.
Add-ons
- Electricals: Integrated wiring within beams for pendant or string lights.
- Privacy: Fixed vertical louvers or metal screens on up to two sides.
About Prefabricated Outdoor Structures
Unlocking Rooftop Potential
I see so many city folks not using their rooftop or terrace, thinking it's just dead space. Truth is, it's perfect for an extra room, hangout spot, or even a quiet den. You'd be surprised at what a well-placed prefab can do.
Why Prefab Wins Over Brick Construction
Traditional construction on rooftops? Bhaut jhanjhat hai (so much hassle) - messy, slow, and heavy. Your building might not even handle the weight. That's where I come in with prefabricated outdoor structures - no heavy bricks, no endless noise.
How I Build: Engineering Meets Design
- I use lightweight steel frames, so yes, most roofs can handle them without stress.
- Quick install - typically done in 30 days, mostly off-site. Your daily life barely gets disturbed.
- All-weather insulation means your new space stays cool, even when Dilli ki garmi (Delhi's heat) hits hard.
Making It Feel Like Home
Once the basics are sorted, I make sure it looks as good as it works. Designer facades, panoramic openings, and integration with terrace gardens or decks - everything's custom. If you want a terrace glass house or an insulated rooftop lounge, that's where I shine.
What You Can Get
From a cozy rooftop prefab room to a full modular penthouse structure, if you can picture it, I can build it. I manage the whole process, from sketch to finish. Just bring your idea - I'll handle the rest.
Meet your Expert
Studio Machaan
28 connects in last 3 months
My Story
Namaste, we’re Studio Machaan – Chirag and Ruhi, husband and wife, partners in design. Ruhi’s the architect with an eye for detail, I’m the guy who makes sure the plans get built right. We started this because, honestly, city rooftops are just wasted space. A machaan means a new view, a fresh escape. We mix nature and design so your terrace becomes a place for memories, not just storage.
My Work
Luxury Outdoor Living Spaces - We design and build terrace gardens, landscape architecture, modular rooftop smart homes, gazebos, and custom outdoor water features.
Design to Execution - From sketch to setup, we handle it all. Aapko chinta nahi – we manage every detail, start to finish.
Practical & Beautiful - We plan for beauty, but also for function – lighting, security, structure. No shortcuts, no ignoring the maths.
Modern Fast Construction - We use lightweight steel and high-density insulation for rooftop structures, so your space is ready in 30 days. No brick mess.
Quality Materials - German wicker, proper granite, all-weather stuff. We pick materials that last, so your terrace stays stunning.
