We install rooftop solar panels, hybrid thermal systems, and solar water pumps for homes and businesses, help you with net metering and subsidies, and provide ongoing support so you save on bills and maintenance for 25-30 years.
Pricing Guide
Turnkey On-Grid Rooftop Solar System
Hardware & Core Components
- PV Modules (Panels): Tier-1 Mono-Crystalline PERC Half-Cut Cell modules (540Wp - 550Wp range). Brands typically include Waaree, Adani, or Vikram Solar. 25-year performance warranty.
- Solar Inverter: High-efficiency On-Grid String Inverter (IP65 rated for outdoor use) with remote monitoring (WiFi/Dongle).
- Mounting Structure: Hot Dipped Galvanized Iron (HDGI) structure, elevated to 5-8 feet to ensure roof utility is not lost. Designed to withstand wind speeds of 150 km/ph.
- Civil Foundation: Pre-cast concrete blocks or grouted civil pedestals (PCC) to anchor the structure without puncturing/damaging the roof waterproofing.
Balance of System (BoS)
- Cabling: UV-resistant DC solar cables (4 sq mm or 6 sq mm) and AC cables for grid connection.
- Safety Protection: DC Distribution Box (DCDB) and AC Distribution Box (ACDB) with MCBs and Surge Protection Devices (SPD).
- Earthing & Lightning: Maintenance-free chemical earthing pits (separate for DC, AC, and Lightning Arrestor) and copper lightning arrestor rod.
Service & Liaisoning
- Net Metering: End-to-end handling of the application process with the local DISCOM, including file preparation, site feasibility check, and meter testing coordination.
- Subsidy Assistance: Guidance and documentation support for Central (PM Surya Ghar) and State subsidies.
- Maintenance: 5-year Annual Maintenance Contract (AMC) for system health checks and cleaning schedule guidance.
HTS Panel Retrofit (For AC Energy Saving)
Thermal Solar Technology
- HTS Panel Unit: 1x SunTrac/Perfect Infra style parabolic solar concentrator panel.
- Capacity: Rated for up to 7.5 Tons (TR) of air conditioning load (suitable for VRV/VRF outdoor units or large ducted splits).
- Mechanism: Dual-axis or single-axis active tracking system (Photo-tracking eye) that rotates the mirrors to follow the sun for maximum heat generation.
- Materials: 100% Aluminium enclosure with hardened clear glass cover and internal copper absorption tubes.
HVAC Integration & Installation
- Refrigerant Piping: Medical-grade copper piping to bypass the AC compressor discharge line through the solar panel.
- Gas Charging: Top-up of refrigerant gas (R410A/R32) required due to increased line length.
- Insulation: High-grade nitrile rubber insulation for all exposed piping to prevent heat loss.
- Mounting: Specialized mounting stand for the HTS panel, oriented South-facing for maximum exposure.
Warranties & Compliance
- Warranty: 5-year manufacturer warranty on the HTS panel.
- Commissioning: Pressure testing of gas lines and performance calibration of the AC unit post-installation.
- Depreciation Benefit: Documentation provided to claim 40% accelerated depreciation (for business owners/commercial setups).
Integrated Solar Street Light System
Lighting & Solar Specs
- Luminary: 20W to 30W LED Module (High efficacy Phillips/Osram LEDs) providing cool white light.
- Solar Panel: High-efficiency Mono/Polycrystalline panel integrated into the top housing (approx 40Wp - 60Wp).
- Battery: Lithium Ferro Phosphate (LiFePO4) battery pack built-in, designed for 12+ hours of backup with dimming logic (automatic dusk-to-dawn operation).
Pole & Mounting
- Pole: 5 to 6-meter Galvanized Iron (GI) Octagonal or Tubular pole, rust-proof coated.
- Mounting Arm: Angled bracket for optimal light dispersion.
Civil Works & Installation
- Foundation: Excavation and creation of a reinforced concrete cement (RCC) foundation with grouted bolts (J-Bolts).
- Erection: Crane/Labor assistance to fix the pole vertically.
- Automation: Sensor configuration for automatic ON/OFF based on ambient light.
About Solar Energy Solutions
Why We Do What We Do
I look around and see the desh ke kone-kone ki kahani (stories from every corner) - dry borewells, rising bills, pollution going crazy. That’s why I started Eco Santulan - to bring back some santulan (balance) with simple steps like solar.
What Going Solar Means With Us
I’m not saying solar will fix everything overnight, but it’s a solid start. You get to take charge of your bills and do your bit for the planet. No need to wait for some future miracle.
What We Offer

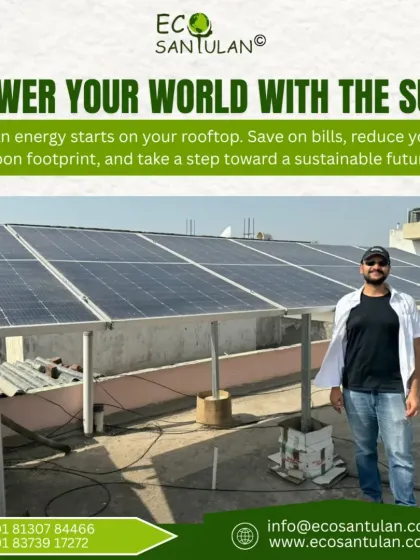

- Rooftop solar panel installation for homes and businesses - lasts 25-30 years, barely any maintenance.

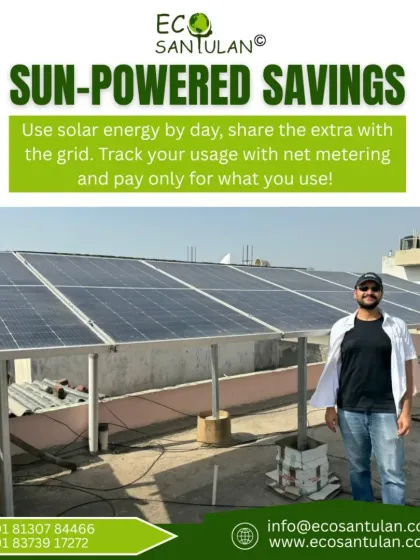

- Solar net metering benefits: sell back extra power, earn a little, help the grid.
- Hybrid thermal solar for offices or hotels with crazy AC bills - saves space and gives a fast payback.
- Solar water pumping system for societies - cuts water pumping costs, keeps the water flowing even if the grid’s down.
Real Perks

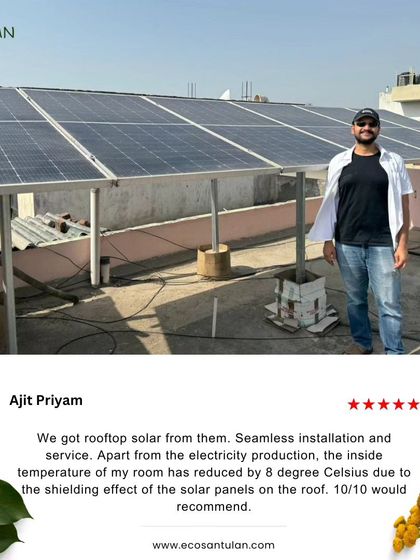

- Some folks found their rooms actually got cooler under the panels!
- Bills can drop up to 90% if you use it right.
- Property value? It usually bumps up.
Support That Sticks
- I walk you through government solar panel subsidies and the paperwork headache.
- Free consult, no pressure. Install is neat, and I don’t disappear after - ongoing support is part of the deal.
Going solar isn’t just about being ‘green’ - it’s common sense now.
Meet your Expert
Eco Santulan
My Story
Hey, I’m Meenakshi. You know, sometimes I think - we save up for our kids, give them all comforts, but what good’s that if the air’s dirty and water’s not safe? That hit me hard. So, I started Eco Santulan. ‘Santulan’ means balance. We’re about simple, real stuff: planting trees, composting kitchen scraps, harvesting rain. Dirty hands, clean world - that’s the deal. Every small step matters, for our kids and theirs.
My Work
Eco-Friendly Solutions for Home & Work - We help with kitchen waste, e-waste, rainwater harvesting, solar setups, and compostable tableware. Simple switches for everyone.
Turn Waste Into Garden Gold - Use Daily Dump Khamba compost pots or automatic composters for rich, natural compost. No more stinky bins.
Rainwater Harvesting Made Easy - Neerain rainwater filters recharge borewells. We also do big projects like STPs. Monsoon water shouldn’t just flow away.
Go Solar, Save Money - We set up rooftop solar panels. Clean energy, lower bills. Good for you, better for the earth.
Sustainable Lifestyle Products - Try Rescript recycled stationery and Chuk compostable tableware. Easy swaps, big difference.
