Professional Network Rack Setups & Wiring
CCTV is only as reliable as its foundation. I organize your wiring and NVR housing to ensure your security network stays dust-free, cool, and easy to maintain.

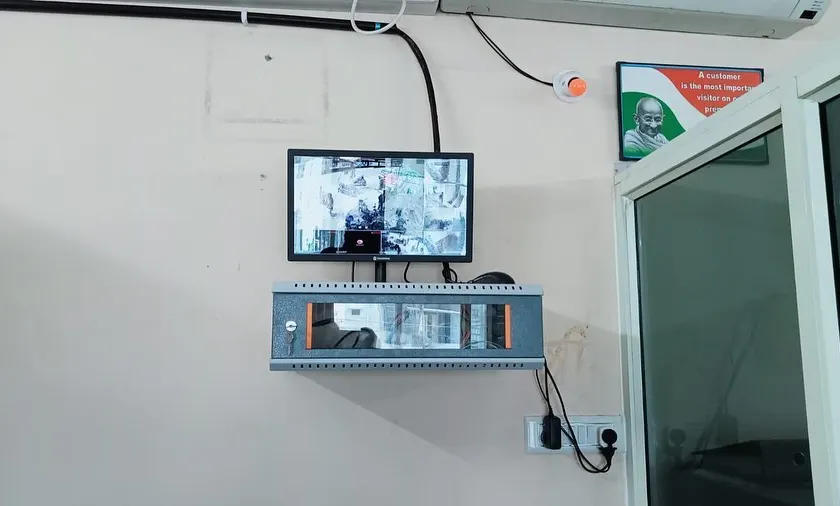

A complete wall-mounted setup with the CCTV monitor and a lockable network rack. This keeps the core of your security system secure and the installation looking clean.
A close look inside a rack at a network switch with all ethernet cables properly terminated and connected. The indicator lights confirm that the network is active and data is flowing.
Here I am setting up a Hikvision Embedded NVR inside a new network rack. This protects the main recording unit and keeps the server room or office space organized.
I stock network racks in different sizes to fit the scale of your project, from small home setups to larger office systems. They all come with a lockable glass door for security.
This installation uses two separate network racks to manage a larger number of connections for a school's CCTV system. Proper organization is key for reliability.
A clean installation showing the network rack mounted neatly in the corner with the main wiring concealed for a professional finish.
Preparing a new network rack with a Hikvision NVR on top, ready for installation. This is the foundation of a reliable and organized surveillance network.
About this collection
A messy bundle of wires is more than an eyesore, it is a recipe for system failure. When I install your network rack, I make sure the NVR, PoE switch, and power supply are safely housed in a ventilated cabinet. This protects your core equipment from dust and humidity, and since I organize and label every cable, any future troubleshooting or upgrades become a simple task rather than a headache.
I do not believe in makeshift solutions or 'jugaad' when it comes to infrastructure. Whether I am setting up a small home surveillance system or a complex network for an office, the process remains the same. I use 4U and 6U wall-mounted racks to keep your equipment secure and off the floor.
My setup process includes:
- Proper Termination: I don’t leave loose ends. Every Cat6 cable is punched down into keystone jacks or crimped with high-quality RJ45 connectors to ensure stable data flow.
- PoE Integration: I use Power over Ethernet switches to power your cameras, which eliminates the need for messy power plugs near every camera location.
- Rack Management: I install cooling fans inside the cabinets to keep your NVR and switch from overheating, extending the life of your hardware.
- Dressing: I use cable ties and trunking to bundle and hide your wiring, keeping your server room or office space looking clean.
If you are setting up a computer lab, a business server room, or just a home security network, I make sure the foundation is solid. I handle the drill work, the mounting, and the configuration of the network, so you have a system that is built to last. I use trusted brands like Hikvision, Zebronics, and D-Link for all switches and racks to ensure compatibility and reliability.
Sadwini Infotech
I am the one you will talk to, and I am the one who will show up at your site. I don't believe in shortcuts, so I handle the rack assembly and cable management myself to make sure everything stays secure.
