Industrial & Commercial Door Automation
Available across India
We design, build, and install custom automated doors for factories, warehouses, hospitals, and labs, with options like high-speed, fire-rated, and specialized doors, and provide full support across India.
Pricing Guide
High-Speed Self-Repairing PVC Door (3m x 3m)
Core System
- Curtain Material: Heavy-duty reinforced PVC fabric (approx. 900 GSM) with a 600mm transparent vision window for visibility.
- Zipper Technology: Patented self-repairing edge system that automatically re-inserts the curtain into guides if dislodged by impact.
- Frame: Powder-coated galvanized steel side guides and top hood (standard RAL colors).
Automation & Drive
- Motor: Heavy-duty industrial servo motor (0.75kW - 1.5kW) designed for high-frequency cycles.
- Speed: Adjustable opening speed (0.8m/s to 1.5m/s) with VFD soft-start/stop to reduce mechanical wear.
- Control Panel: IP54/IP65 rated box with variable frequency drive.
Safety & Activation
- Sensors: Microwave radar motion sensors on both sides for hands-free automatic opening.
- Protection: Bottom safety edge and photoelectric cells to prevent the door from closing if an obstacle is detected.
- Emergency: Manual crank or declutching mechanism for operation during power failure.
Service
- Warranty: 1-year comprehensive warranty on Motor and Controller.
- Installation: Professional onsite erection by technical team.
Motorized Galvalume Rolling Shutter (4m x 4.5m)
Shutter Build
- Material: High-grade Galvalume steel slats (Aluminum-Zinc alloy coated) providing superior rust resistance over mild steel.
- Profile: 80mm - 100mm interlocking slats (0.8mm - 1.0mm thickness) with wind-lock clips for stability.
- Sealing: Reinforced bottom rail with EPDM rubber weather seal to block dust and water.
- Guides: Deep C-channel side guides (3mm - 4mm thick) anchored for high wind pressure.
Motorization
- Drive Unit: Heavy-duty Side Motor (Single or 3-Phase) with integrated brake system.
- Controls: Wall-mounted Push Button Box (Up/Stop/Down) for internal operation.
- Power Backup: Mechanical chain hoist included for manual lifting during power outages.
Safety & Finish
- Anti-Drop Device: Critical safety brake mechanism to prevent free-fall in case of component failure.
- Aesthetics: Natural bright metallic finish with a protective top hood cover to conceal the rolled assembly.
Automatic Bi-Parting Glass Sensor Door (6ft Opening)
Operator System
- Motor: Silent 24V Brushless DC (BLDC) motor ensuring noise-free operation.
- Controller: Microprocessor-based unit with self-learning capability for door weight and stroke.
- Track: High-grade Aluminum alloy rail (approx. 4.2m) with a sleek cover pelmet to hide mechanism.
Glass & Hardware
- Panels: Two frameless 10mm or 12mm Toughened (Tempered) glass leaves with polished edges.
- Mounting: Heavy-duty floor guides and clamp-based hangers (no drilling through glass required).
Sensors & Modes
- Activation: Two microwave radar sensors (internal and external) for automatic bi-directional opening.
- Safety: Photoelectric safety beam to prevent door closing when a person is in the threshold.
- Operation: Key switch selector for Automatic, Hold Open, One-Way (Exit Only), and Lock modes.
- Manual Use: Low resistance manual sliding enabled during power failure.
About Industrial & Commercial Door Automation
Why Automation Matters
After working with businesses all over India for decades, I know automation isn’t just about convenience. It changes how you run your place - making things smoother, safer, and often saving on energy bills. I’m not here to push a product, I want to help you find what actually fits your workflow.
What I Offer
-
I design, make, and set up automated doors for factories, warehouses, hospitals, labs, and more. Everything’s custom - size, look, function - so you get what you actually need.
-

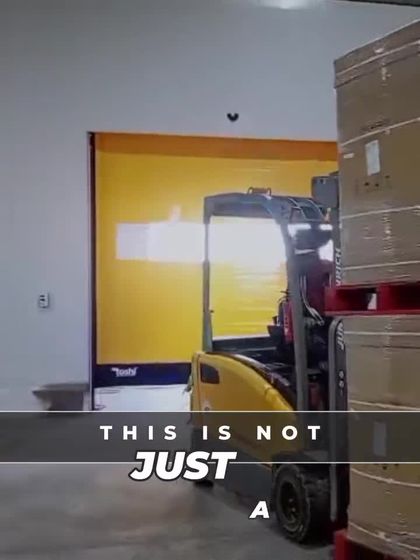

High-speed industrial doors: These move quick, keep the dust and outside air out, and are made for busy spots. If your forklift hits the curtain, it pops back in on its own. Even got options for cleanroom door automation and explosion-proof areas.
-
Automated rolling shutter systems: Quiet, sturdy shutters in steel or aluminum. Fire-rated ones for extra safety. I can add a small wicket door so staff don’t have to open the whole thing to get through.
-
Sectional doors: These save space, insulate well, and just slide up flat along your ceiling. Handy if you need things secure but don’t want bulky doors eating up room.
-
Specialized stuff like hospital doors that seal tight for zero contamination, or lead-lined X-ray doors for radiation safety.
How I Work
- First, I chat with you about what’s bugging you or what you want fixed.
- My team comes up with the right fit, customizes it, and builds it here in India.
- We install anywhere in India and keep things running smooth with support after.
I stick around for the long run. If something goes off, you know who to call. With me, it’s not just a door - it’s a fix for your everyday headaches.
Meet your Expert
Toshi Automation
98 connects in last 3 months
My Story
Hey, we’re Toshi Automation. Kapil started us up, but really, we’re all about team spirit. My dad’s old-school values—education, helping out—still run deep here. Every year, we do ‘Ashirwad Day’ scholarships for our crew’s kids. Our folks? #Janbaaz in production, #YodhaTeam in sales, #Himmatwale in customer service. We work hard, play harder—think Holi colors, Lohri fires, crazy outdoor ‘Jalsa’. We share, we listen, we grow. That’s our vibe. Success isn’t just numbers, it’s people.
My Work
Entrance and Access Automation - We do self-repairing high-speed doors, customized motorized rolling shutters, automated sliding gates, flap barrier access control, and warehouse docking automation.
Custom Solutions - No cookie-cutter stuff. We match size, color, and finish to your space—home, office, factory, whatever.
Smart Tech, Real Results - Our automation is reliable, safe, and efficient. You’ll see silent shutters, smooth gates, and tech that actually works.
Experience Centre Demo - Ghaziabad में आओ (Come to Ghaziabad), check out live demos with our team. See it before you decide.
Serving All Sectors - From pharma to metros, residential to government—if you need automation, we’re in.
