Solar Water Heaters
Available across Bengaluru
We make, supply, and install flat plate solar water heaters for homes, handling everything from panels to tank with our own team so you get reliable hot water and lower electricity bills without any middlemen.
Pricing Guide
200 LPD Family FPC System (3-4 People)
System Specifications
- Storage Tank: 200 Litre capacity with SS 304 Food Grade Stainless Steel inner tank to prevent rust.
- Outer Shell: Galvanized Iron (GI) with white powder coated finish for weather protection.
- Thermal Retention: High density 45mm to 50mm PUF injection insulation to keep water hot overnight.
- Collector Array: 2 Flat Plate Collector (FPC) panels (2m x 1m each) featuring copper riser tubes and aluminium fins.
- Glass Protection: Toughened textured glass (3.2mm to 4mm) designed to withstand hail and maximize heat absorption.
Structure & Mounting
- Stand: Fabricated Mild Steel (MS) structure with black powder coated anti rust paint.
- Installation Method: Securely grouted to the rooftop using concrete bolts or fastened to blocks based on roof type.
- Hardware: Heavy duty GI nuts, bolts, and vibration proof neoprene washers.
Plumbing & Safety
- Piping Kit: Includes up to 10 feet of CPVC or UPVC piping for inlet and outlet connections near the tank.
- Safety Valves: Temperature & Pressure (T&P) Relief Valve and Air Vent Pipe to prevent over pressurization.
- Interconnections: Insulated rubber hoses connecting the panels to the tank.
Installation Services
- Logistics: Doorstep delivery and transport of materials to the site within city limits.
- Execution: Full rooftop assembly, tank positioning, and integration with existing terrace plumbing points.
- Commissioning: System filling, leak testing, and operational demonstration.
300 LPD Large Capacity FPC System (6-8 People)
High Capacity Hardware
- Storage Tank: 300 Litre SS 304 inner vessel suitable for homes with 3 to 4 bathrooms.
- Collector Array: Triple Flat Plate Collector setup providing approx 6 sq meters of absorption area for faster heating.
- Heater Readiness: Built in flange provision for adding an electrical backup heater coil (coil sold separately).
- Outer Finish: Powder coated metal sheet with durable black end covers.
Heavy Duty Structure
- Reinforced Stand: Sturdy Mild Steel (MS) frame engineered to support approx 450kg operating weight.
- Levelling: Includes levelling shims or concrete block supports to ensure horizontal stability on the terrace.
- Protection: Full black anti corrosive coating on the structural frame.
Advanced Plumbing
- Hard Water Protection: Includes a Magnesium Anode rod to protect the steel tank against groundwater corrosion.
- Thermal Protection: Thermal cladding on the hot water outlet pipe (up to 1 meter) to minimize heat loss.
- Connectivity: High grade rubber interconnects with hose clamps for series or parallel panel linking.
Professional Execution
- Material Handling: Safe transport and manual lifting of heavy tank and panels up to the 2nd floor (crane charges extra if needed).
- Installation: Complete mechanical fixing and connection to overhead tank outlet and house inlet.
- Testing: Full system flow check and pressure verification.
About Solar Water Heaters
What We Do
At N K Solar, we let the sun do the hard work. I’m all about clean energy that’s easy on your pocket and better for the environment. My solar water heaters are built for homes, especially if you want a simple, reliable hot water setup that doesn’t chew up electricity.
How It Works

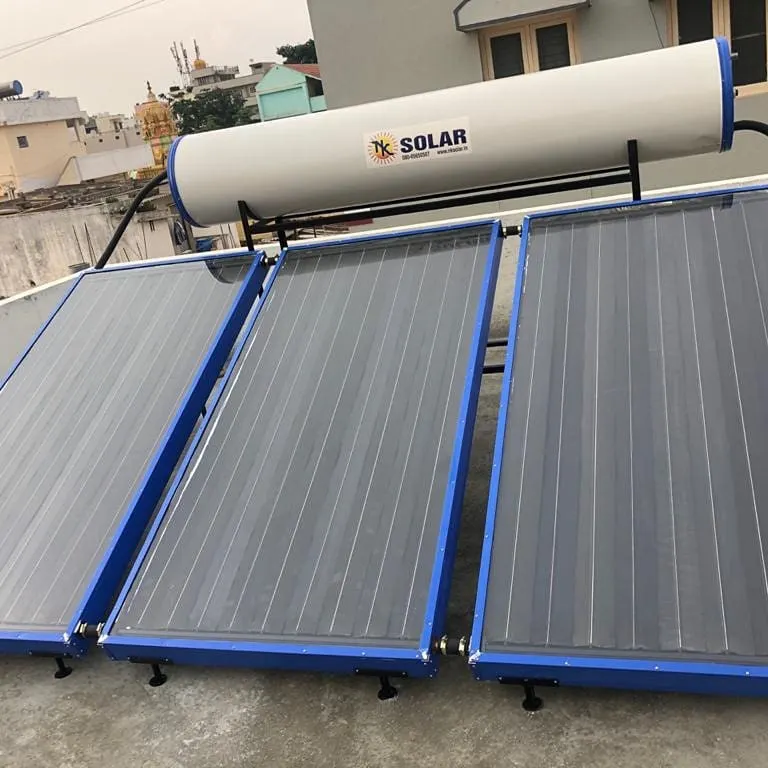

I make, sell, and set up Flat Plate Collector solar heater systems, which means you get everything - from the panels to the insulated solar storage tank. For most families, my 300-liter system hits the sweet spot. It comes with three collector panels and a sturdy tank, all fixed up by my own crew.
Installation Process

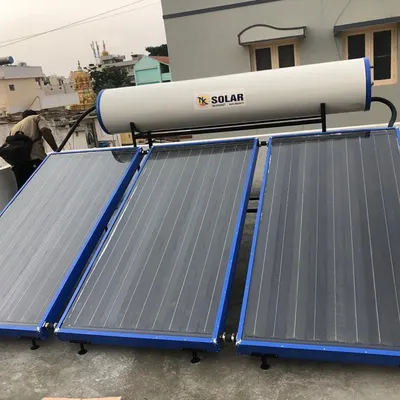

My team handles everything at your place. Usually, we install on flat concrete rooftops - that’s where these systems work best. You don’t need to worry about the details; we deliver, fix, connect, and get your solar water heater running right.
Why Pick My System?
- Solid build, lasts for years.
- Helps cut down your electricity bill.
- You deal with just one team - no middlemen.

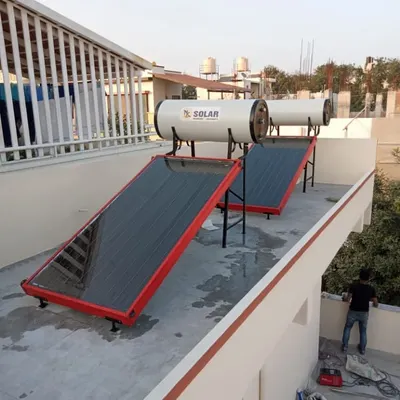

- Collector panel frames come in a few colour options, so you can choose what suits your place.
If you’re after energy efficient water heating with no fuss, I keep it simple and straightforward.
Meet your Expert
N K Solar
My Story
We’re N K Solar, born and raised in Bangalore. We started out wanting to do our bit for the planet, one rooftop at a time. Our thing is solar – clean energy, less pollution, future-proof. We make our own stuff, so we know what goes in, and we keep it affordable. Every time we set up a solar FPC water heater or switch on a street light, it’s a win for us and for namma Bengaluru.
My Work
Solar Product Manufacturing & Supply - We make and supply solar PV modules, solar FPC water heaters, customized solar street lights, insect traps, rooftops, pumps, and charge controllers.
Affordable Solar Solutions - We keep our prices pocket-friendly for Bangalore folks, but don’t cut corners on quality.
Installation & Customization - We install solar water heaters, street lights, and more. Need a custom battery? We do that too.
Quality and Warranty - We stand by our solar charge controllers and other products with solid quality and warranty.
