300L FPC Solar Water Heater Systems
Our 300-litre flat plate collector system is designed for larger households requiring consistent hot water. We manufacture and install these units directly to ensure quality and affordability.

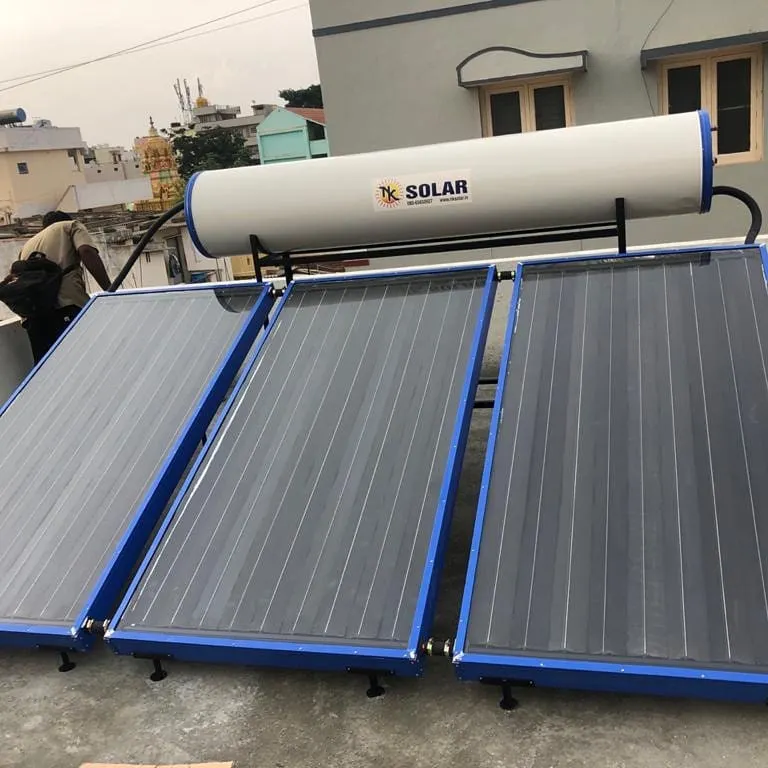

A member of our crew making the final connections between the collector panels and the storage tank. This step is crucial for the thermosiphon process that heats your water using solar energy.
Our technician completing the setup of a 300L FPC solar water heater. We ensure all components are securely fastened and properly connected for optimal performance.
The installation process for our standard 300L solar water heater system. Our team handles all aspects of the setup on-site, from assembly to final checks.

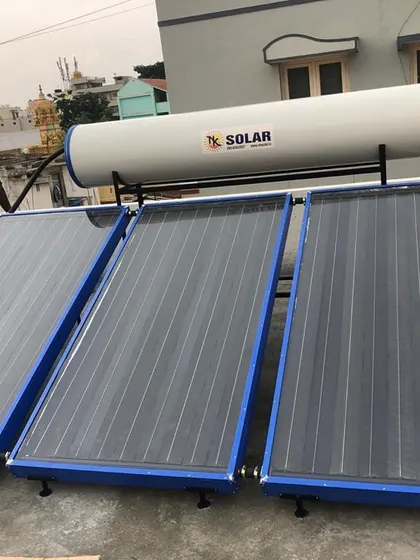

Connecting the insulated pipes on a 300L FPC system. Proper insulation is key to minimizing heat loss and maximizing the efficiency of the solar water heating unit.

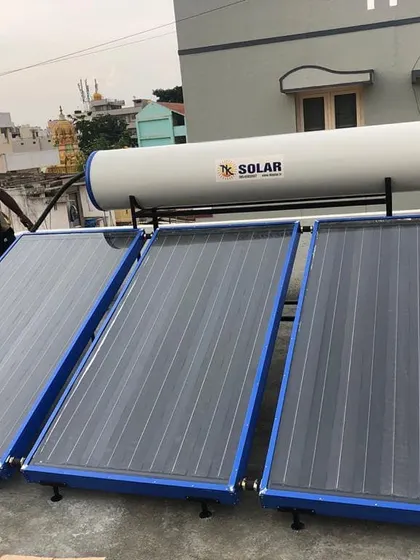

A view of our technician working on a standard 300L FPC installation. We provide a complete, end-to-end service from our own skilled team.

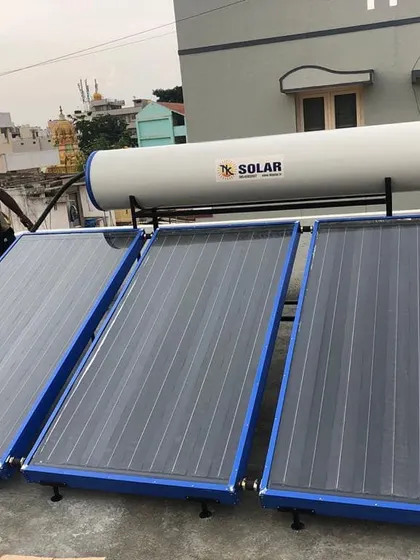

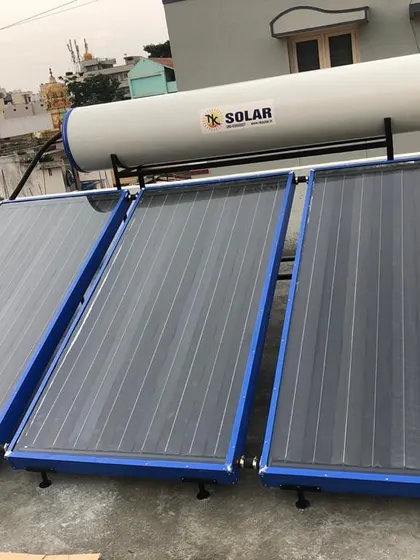

A clear view of the completed 300-liter FPC solar water heater installation. The system is positioned to receive maximum sunlight throughout the day for efficient water heating.

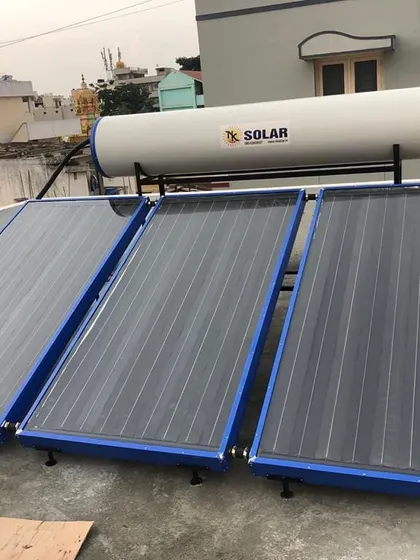

The finished 300L FPC system, ready to provide eco-friendly hot water. The sturdy frame and adjustable legs ensure a stable and secure fit on any flat rooftop.

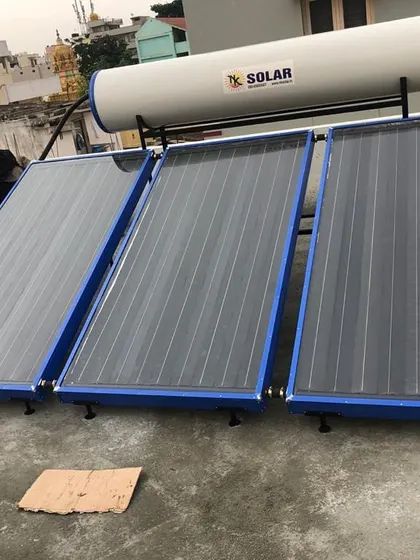

Another angle of our standard 300L solar water heater after installation. The three-panel setup is designed to meet the daily hot water demands of a typical household.

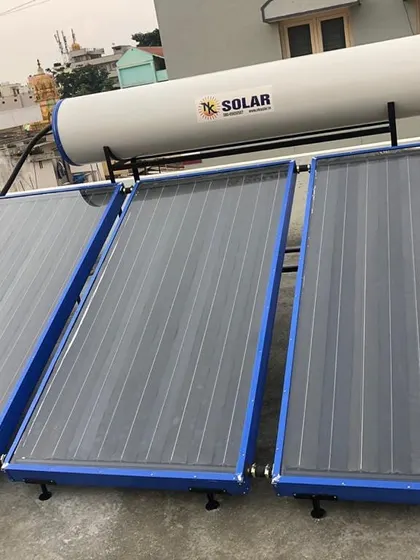

Our standard 300-liter FPC solar water heater, shown fully installed. This system is a popular choice for homeowners looking to reduce their electricity bills with a reliable solar solution.
A complete view of the 300L FPC system post-installation. This setup provides a consistent supply of hot water powered by clean, renewable solar energy.
About 300L FPC System: Our Most Popular Model
For households with 6 to 8 members, this 300-litre system is our most reliable solution. We use food-grade SS 304 stainless steel for the inner tank to resist corrosion from hard water, which is common in many parts of the city. The three flat plate collector panels ensure faster heating efficiency compared to smaller units, providing you with a steady supply of hot water even during cooler months.
Why Choose Our 300L FPC System
We built this system to solve the specific hot water needs of Bangalore families. Unlike vacuum tube models, our Flat Plate Collector (FPC) system is mechanically robust, making it highly resistant to physical damage and easier to maintain over the long term.
Technical Specifications
- Storage Tank: 300-litre capacity with an SS 304 inner vessel, protected against rust.
- Insulation: High-density 45mm to 50mm PUF injection to keep water hot overnight.
- Collector Array: Three flat plate collector panels with copper riser tubes and aluminium fins for maximum absorption area.
- Durability: The outer shell is finished with a powder-coated metal sheet, and the stand uses a mild steel frame with anti-corrosive paint to support the 450kg operating weight.
Our Installation Advantage
When you choose N K Solar, you are dealing with the manufacturer. Our team handles the entire process, including transport, site preparation, and plumbing integration. We include a magnesium anode rod to protect the steel tank from groundwater corrosion and perform full pressure testing before handing over the system. We ensure the installation is stable, secure, and ready for daily use immediately.
