Utility-Scale Solar Power Projects
Available across India
We design, install, and commission large solar power plants for utilities, factories, and government, handling everything from site survey to grid connection with advanced solar technology.
Pricing Guide

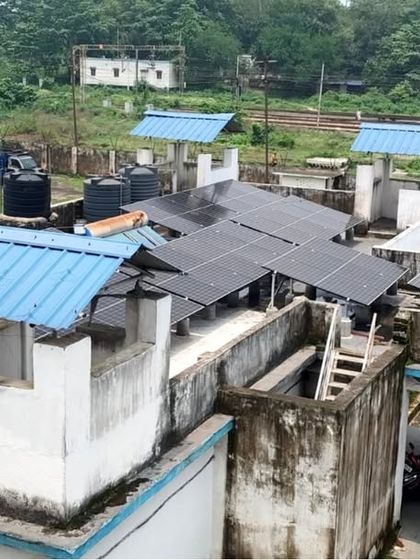

100 kW Turnkey Industrial Rooftop Plant
Core Technology
- Solar Modules: ~175 Shark Series Bifacial Panels (570 Wp - 590 Wp, TOPCon), 22%+ efficiency.
- Inverter: 1 unit Loom Fusion 1003 (100 kW On-Grid) or equivalent with IoT mobile monitoring.
- Structure: Hot Dip Galvanized (HDG) iron (80-micron zinc), cyclone resistant design (150 km/hr).
Electricals & Safety
- Cables: 4-6 sq mm UV-protected DC cables; Aluminum Armored AC cables (up to 50m).
- Protection: IP65 ACDB/DCDB boxes with Surge Protection Devices (SPD Type II).
- Earthing: 3-5 Maintenance-free Chemical Earthing pits (DC, AC, Lightning).
- Lightning: ESE Arrester covering roof radius.
Services & Compliance
- Execution: 3D Shadow Analysis, structural design, material lifting, civil grouting, and electrical termination.
- Approvals: Liaisoning for Net/Gross Metering, DISCOM coordination, and CEIG approvals (official fees extra).
- Warranty: 25-30 years on panels; 5-10 years on Inverter.

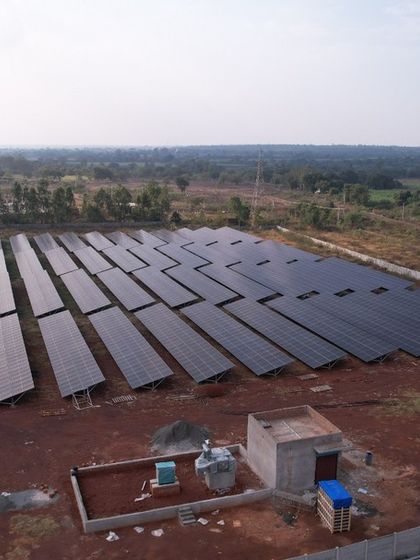

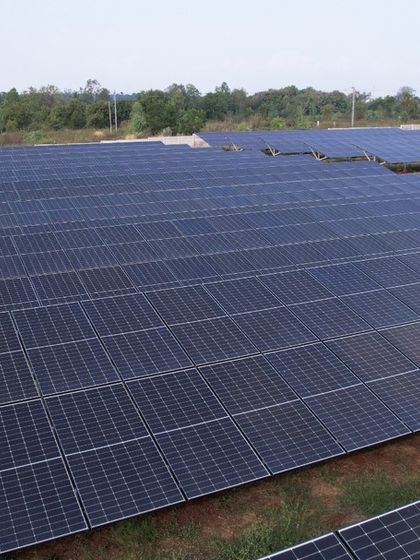

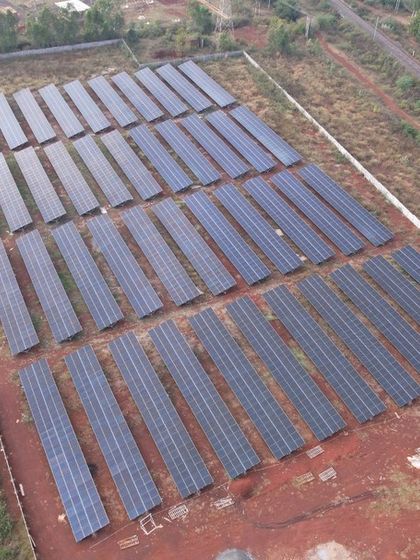

1 MW Ground Mounted Solar Farm
Plant Specifications
- Capacity: 1000 kWp (1 MW) DC Capacity.
- Modules: ~1800 Shark 590 Wp+ Bifacial Modules (10-20% gain from albedo effect).
- Inverters: 10x 100kW String Inverters (clustered) or Central Inverter setup.
- Structure: Hot Dip Galvanized steel with pile foundation (ramming) as per soil report.
High Tension (HT) Electricals
- HT Equipment: 11kV/33kV Switchgear panel (VCB) and metering cubicle.
- Transformers: Inverter Duty Transformer (IDT) stepping 415V to 11kV/33kV.
- Transmission: Overhead AC line or underground HT cable (up to 100m to grid point).
Civil & Site Works
- Infrastructure: PEB/Brick Main Control Room (MCR) and chain-link security fencing.
- Maintenance: Internal pathways and water pipeline network for module cleaning.
Execution
- Approvals: End-to-end liaisoning for PPA, Open Access, or Captive status.
- Timeline: Approx. 3-4 months post land handover.
- Training: O&M handover training for local staff.

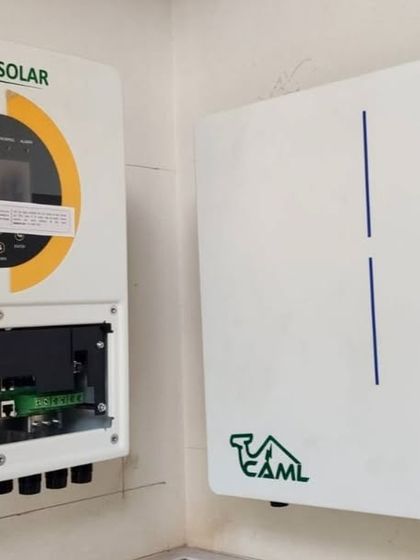

100 kWh Industrial Battery Storage (BESS)
Storage Technology
- Batteries: 5 Units Loom CAML 10051 ST-HV (Stackable, LiFePO4 chemistry).
- Capacity: 100 kWh usable energy with 3000-5000 cycle life (~10 years).
Power Conditioning
- Inverter: 50kW - 100kW Hybrid Inverter.
- Functions: Blends Solar, Grid, Battery, and DG. Supports Peak Shaving, UPS, or DG Sync.
Hardware & Installation
- Management: Integrated BMS with cell balancing and health monitoring.
- Setup: Vertical stackable rack with thermal management and heavy-duty DC copper cabling.
About Utility-Scale Solar Power Projects
Kaam Ki Baat (Straight Talk)
We’re Loom Solar, and our goal is simple - make India energy-independent. We started small, bringing solar to homes, but now we’re working at the scale of cities, factories, and big government setups. Our belief? Apni Bijli, Apna Haq (Our electricity, our right).
How We Build Big Solar Projects
We handle everything for utility-scale solar power projects - from the first site survey to grid integration. No middlemen, no confusion. Just us, doing the heavy lifting:
- Site planning and custom design for max output
- Deployment of high-efficiency solar panels for industry, including TOPCon, HJT, and bifacial tech
- Use of industrial-grade inverters and options for solar energy storage solutions
- Full installation and commissioning of multi-megawatt solar plants

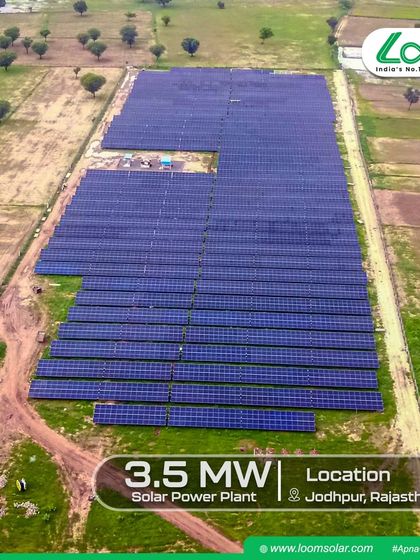

Real Projects, Real Impact
We’ve powered up places from Tamil Nadu to Rajasthan:
- 8 MW grid-connected solar farm in Erode
- 5.3 MW utility project in Indore

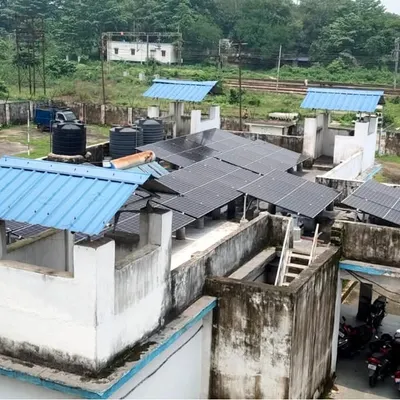

- 2 MW rooftop for a government office in Bokaro
- 700 kW for a water treatment plant in Maharashtra
Who We Partner With
We work with utility companies, big factories, government bodies, and folks running public infrastructure who want to go green in a big way.
What You Get With Us
- Experience handling big, complex projects
- Latest tech for long-term, reliable energy
- A partner focused on making India greener and more self-reliant
Solar lagao, future banao (Install solar, build your future).
