Automated Gates & Entrance Systems
Available across India
Pricing Guide
Retrofit Sliding Gate Automation System
Core Automation Tech
- Motor Unit: 1 Unit Heavy-duty Italian Motor (Brands: Roger Technology / Comunello / Genoamatic).
- Capacity: Rated for 400kg to 800kg residential gates.
- Motor Type: Brushless DC Motor (Silent operation, continuous duty cycle).
- Rack Mechanism: Up to 5 meters of Heavy Duty Nylon-Steel reinforced gear rack (quieter than pure steel).
Safety Features
- Rebound Technology: Obstacle detection system that automatically reverses gate if blocked.
- Photocell Sensors: 1 Pair of Wired IR Sensors mounted on pillars.
- Emergency Release: 2 Manual Release Keys for power failures.
Control & Access
- Remotes: 2 Units of Rolling Code Transmitters (Copy-proof).
- Wall Switch: 1 Wired Push Button for indoor operation.
Service & Installation
- Wheel Inspection: Assessment of existing wheels (replacement may be required for warranty).
- Execution: Welding of racks, motor foundation bolting, and electrical termination.
- Warranty: 3 to 5 Years on Motor.
Double Swing Gate Automation Kit (Linear Arm)
Actuator Technology
- Motors: 2 Units of Linear Screw or Telescopic Arm Motors (Italian Make).
- Tech: Brushless Digital Motor for low energy consumption.
- Opening Angle: 90 to 110 degrees standard capacity.
- Housing: Die-cast aluminium with polyester powder coating (Weatherproof).
Security & Locking
- Electric Lock: 1 Unit Solenoid Ground Lock or Latch Lock (Essential for wind resistance).
- Auto-Close: Programmable timer for automatic closure.
- Manual Override: Key-operated release mechanism on each arm.
Safety & Sensors
- Photocells: 1 Pair of safety sensors to prevent swinging into vehicles.
- Force Adjustment: Digital controller to manage push-force and prevent crushing.
Installation Specifics
- Mounting: Heavy-duty welding of rear brackets to gate pillars.
- Cabling: Inter-connection cables laid between motors (may require driveway cutting).
- Stopper: Installation of a center mechanical stop on the ground.

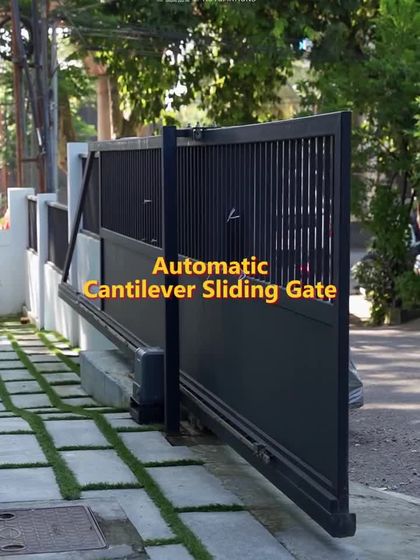

Cantilever Trackless Gate Mechanism & Automation
The Floating Hardware Kit
- Brand: Imported Kit (CAIS / Genoamatic / Combi Arialdo).
- Guide Track: 6 Meters of Galvanized 'C' Profile monorail (welded to gate bottom).
- Carriages: 2 Units of 8-wheeled load-bearing carriages.
- Accessories: Guide wheel for docking and End Cup catcher.
- Capacity: Designed for 400kg - 600kg gate leaf.
Heavy-Duty Automation
- Motor: High-Torque Sliding Motor calibrated for Cantilever drag.
- Duty Cycle: Intensive use capable.
- Speed: Approx 10-12m/min.
Smart Safety Suite
- Anti-Crush: Digital encoder detects resistance.
- Safety Beams: 1 Pair of Photocells included.
- Operation: Soft Start/Stop to protect foundation from jerks.
Professional Execution
- Engineering: Detailed civil drawing provided for concrete counter-weight foundation.
- Technical Support: Guidance for fabricators to ensure correct balance on C-Channel.
- Note: Price covers Mechanism and Motor only. Gate fabrication material is not included.
About Automated Gates & Entrance Systems
Automation That’s Not Just About the Remote
I’m Shaheen, and at LMT Automations, we take safety seriously. Automated gates aren't just a fancy upgrade - they need to be safe for everyone. We always include features like photocell sensor safety gates, so accidents don’t happen. I’ve seen too many close calls, and I never want another family in Kerala (or anywhere) to go through that.
Tricky Entrances? We Fix What Others Can’t
Sloped driveways, super tight spaces, wide openings, dirt-clogged tracks - I’ve handled it all. If you’ve been told automation won’t work for your home, just call me. We do custom solutions, especially for those trackless gate systems where the gate literally floats. Tension illa (no worries) about cleaning, rust, or derailment.
Your Gate, Your Way
- Cantilever (trackless) gates: No ground track, sleek, less maintenance, saves on groundwork.
- Sliding gates: Fit for narrow spaces. Want it even tighter? Telescopic sliding gates are our go-to.
- Swing gates: Classic look, but with premium underground motors. No ugly boxes, super quiet, 180-degree opening possible.
Italian Tech, Local Touch
We use motors straight from Roger Technology and Comunello. Brushless gate motors are available too - super silent, low power use, built tough.
Safety Is Non-Negotiable
Every gate gets full safety checks: sensors that stop for people, kids, cars - plus a rebound function if anything’s in the way. Our technicians make sure it’s all working, and I always remind customers to keep checking it.
What You Can Expect
We do a site visit, talk through your property’s problems, and show you exactly what’ll work. I’m always upfront - no confusion. And with our 10-year international warranty, you know we stand by what we do.
Kollam oru vishwasam (trust us), we make safe automation simple.
Meet your Expert
LMT Automations
303 connects in last 3 months
My Story
We’re LMT Automations. For us, it’s not just tech—it’s about keeping homes beautiful and safe. We started out seeing how modern glass houses struggle with security and privacy, but a tragedy near Tirur made safety our priority. Now, every system we install, from cantilever gates to zipscreens, gets tested for real safety. Aa nimisham, oru resistance undenkil, gate backilottu ponam (If there’s resistance, gate goes back). We travel, learn, and bring the best to Kerala, always.
My Work
Entrance Automation Solutions - We make and import automatic gates, security shutters, garage doors, zipscreen blinds, and custom systems.
Premium Materials & Technology - We use imported tech from Alutech and BT Group. Every system is customized for your space.
Smart for Any Entry - Got a slope or odd entry? Our cantilever trackless gate system fits without ground tracks. Zipscreens turn your balcony all-weather.
Safety First, Always - Every gate has rebound and photosensor safety. We set force and torque for smooth, safe movement.
Looks Matter Too - Underground gate motors stay hidden. Shutters are sleek, with lots of colors. Security can look good.
