Power Quality Auditing & Solutions
Available across India
We check your power systems with real-time analyzers and portable tools to find and fix the exact causes of electrical issues, so your equipment runs longer and you avoid costly downtime.
Pricing Guide
Rapid Diagnostic Audit (Spot Check)
Scope of Work
- On-Site Expert: Deployment of a Senior Application Engineer for up to 8 hours.

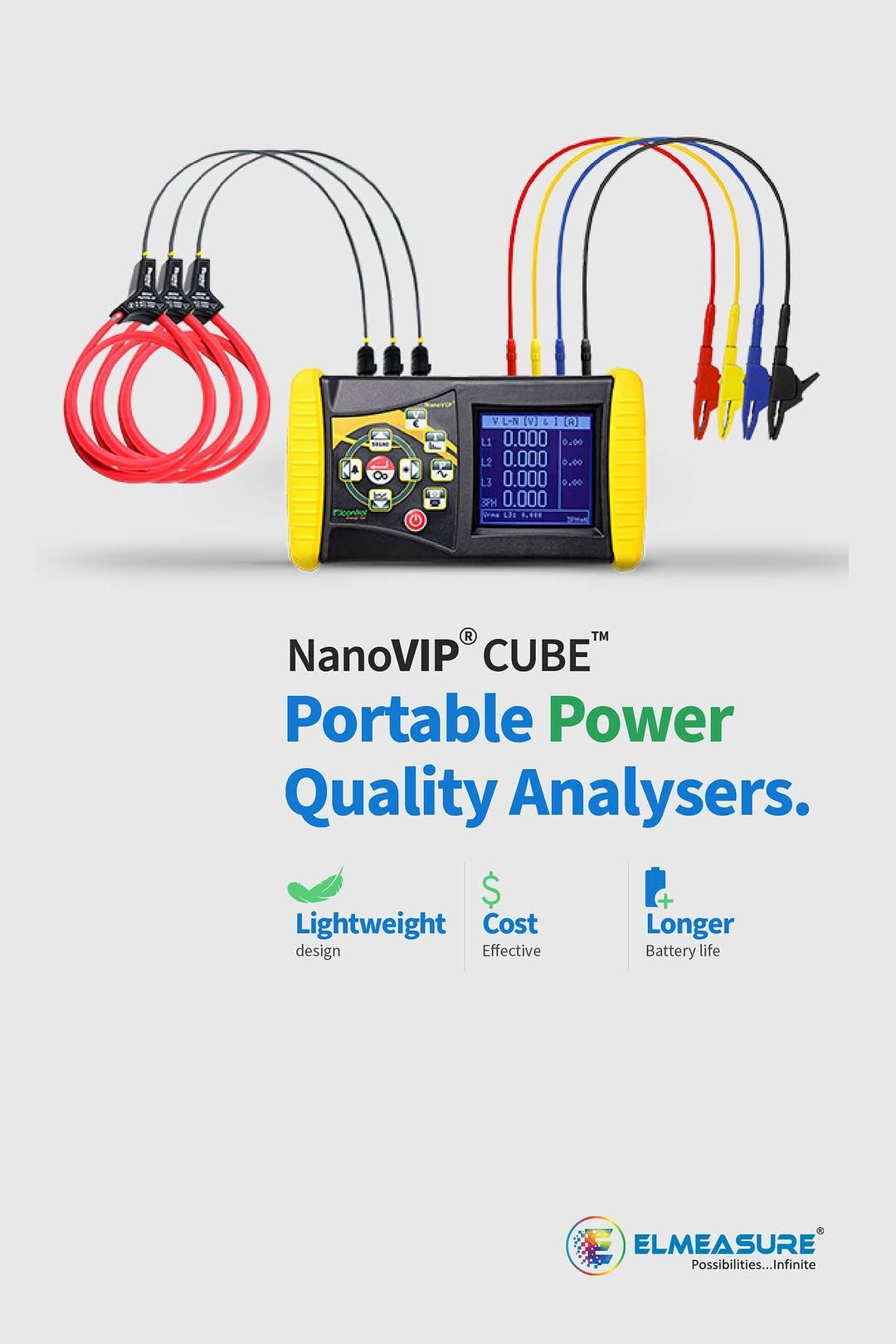

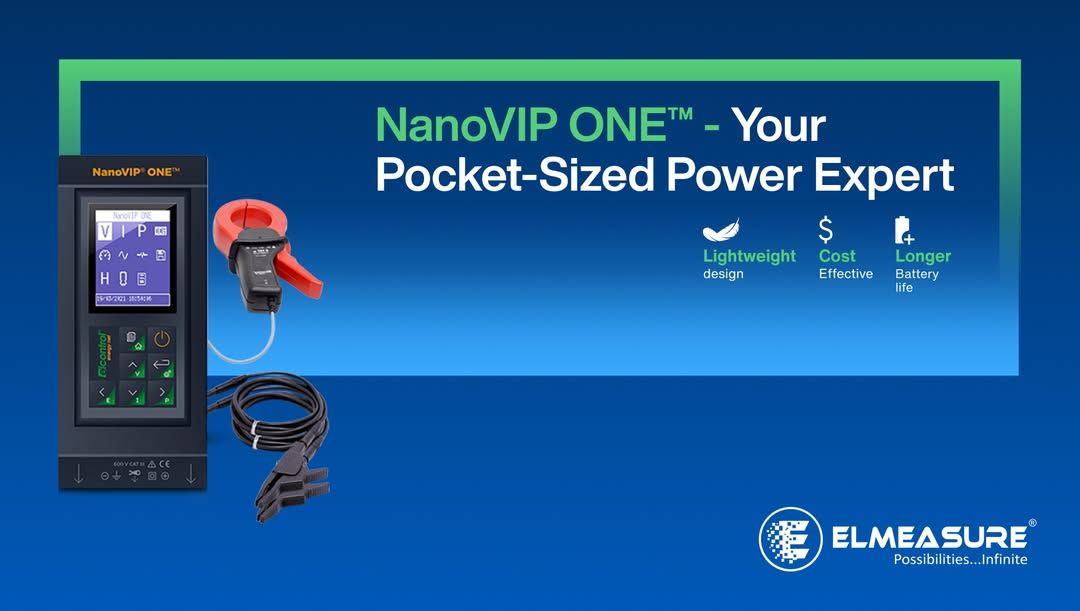

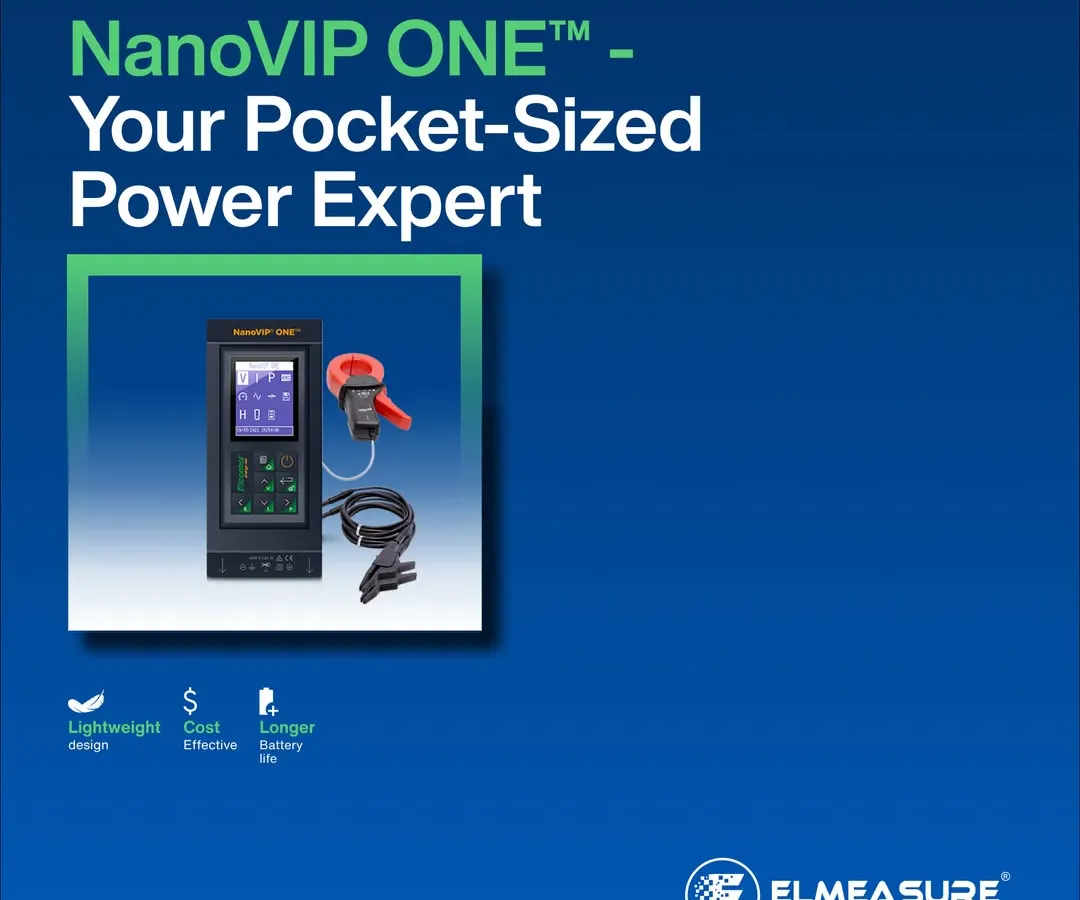

- Equipment: Usage of portable NanoVIP ONE™ or CUBE™ analyzers.
- Physical Inspection: Visual check of panels and connections for hotspots or loose contacts.
Technical Analysis
- Live Parameters: Instant recording of Voltage, Current, Power Factor, and Frequency.
- Harmonics Check: Snapshot measurement of THD (Voltage & Current) to detect dirty power.
- Load Balancing: Checking R-Y-B distribution to prevent neutral heating.
- Transient Check: Spot-detection of sags or swells during load switching.
Deliverables
- Immediate Diagnosis: Verbal consultation on root causes (e.g., nuisance tripping).
- Field Report: A summary PDF highlighting anomalies and basic corrective actions.
Comprehensive Forensic Audit (24-Hour Log)
Scope of Execution
- High-Precision Logging: Installation of IEC 61000-4-30 Class A loggers at critical points (PCC/MCC).
- Duration: Continuous monitoring for 24 to 72 hours to capture full load cycles.
- Cycle Analysis: Assessment of power quality during shift changes and heavy machinery startups.
Advanced Analytics
- Deep Harmonic Profiling: Analysis up to the 50th or 63rd harmonic order to pinpoint VFD or LED noise.
- Waveform Capture: Recording sine wave distortions during fault events for forensic study.
- Compliance Verification: Benchmarking against IEEE 519 and CEA regulations.
Reporting
- Engineering Report: Detailed document with trend logs, vector diagrams, and event timestamps.
- Solution Roadmap: Sizing calculations for Active Harmonic Filters (AHF) or Capacitor banks.
Permanent PQ Monitoring Station (Turnkey)
Hardware Supply
- Analyzer: Supply of Elmeasure PQ 8800/X (Class 0.2S, TFT Touch Display).
- Sensing: Inclusion of 3 High-Accuracy Current Transformers (CTs) or Rogowski coils.
- Accessories: All necessary fuses, wiring harnesses, and mounting kits.
Installation & Commissioning
- Panel Modification: Professional cutout and flush-mounting on existing panel doors.
- Wiring: Complete power and control wiring with ferruling.
- Configuration: Setup of CT/PT ratios, alarm limits, and memory intervals.
Integration
- Connectivity: Configuration of RS485/Modbus or Ethernet for BMS/SCADA data push.
- Training: Handholding session on reading phasor diagrams and extracting historical data.
- Warranty: Manufacturer warranty coverage on supplied hardware.
About Power Quality Auditing & Solutions
Why Power Quality Audits Matter
Power problems show up as weird shutdowns, high bills, or just machines acting moody. That’s usually a sign your electrical network isn’t happy. We check how healthy your power system is, so you can stop guessing what’s wrong and start fixing it.
How We Figure Things Out
Two main ways we work:
- Full-site check: We set up our fixed analyzers for real-time voltage monitoring. These catch even the small stuff, like harmonic distortion, so nothing slips by. Super helpful for big places where little issues can get expensive, fast.
- Quick fixes: Sometimes you just need a rapid check on one line or machine. We use portable gear for on-the-spot troubleshooting, sort of like a power doctor for your equipment.
What You Actually Get
- Gear lasts longer, less surprise breakdowns
- Find out where you’re wasting energy (and money)
- Lower risk of safety problems - safer for everyone
- Data you can use, not just tech jargon
- Fewer headaches from unexplained outages
Who This Is For
We mostly work with factories, hospitals, IT hubs, and anyone who can’t afford downtime. If you need to keep things running smooth and safe, this service is for you.
We aren’t just about fixing a problem once - we help you see what’s really happening so you can plan ahead.
Meet your Expert
Elmeasure
38 connects in last 3 months
My Story
We’re Elmeasure. Powering Today, Preserving Tomorrow, that’s us. Not just words - it’s what we do. You’ll find us geeking out at seminars, posting our newest tech, then grooving at retro parties with the team. We host students, share what’s behind the curtain, and honestly, their questions keep us sharp. We care about small stuff, like saving a watt or making sure our folks don’t wreck their backs. Feels good, doing this together.
My Work
Smart Energy Solutions - We offer smart energy meters, power quality analyzer PQ 8800, switchgear, and tools for renewable energy and EV needs.
Cloud-Based Energy Monitoring - Our multifunction meters and Theiox platform help you track and optimize energy use for real savings.
Low Voltage Switchgear & Protection - We provide ACBs, MCCBs, and contactors for tough safety and reliability. Your systems stay protected.
Automatic Changeover Switches - Our ACCL and ATS solutions keep power flowing, switching seamlessly from mains to generator when needed.
