Pre-Engineered Buildings
Available across India
We design, fabricate, and assemble custom steel buildings in weeks, not months, with up to 30 percent cost savings, earthquake-resistant structures, and over 90 percent recyclable materials.
Pricing Guide
Turnkey Industrial Warehouse & Factory Shed
Civil & Foundation
- Ground Work: Excavation, M25 grade concrete footing, and plinth beams.
- Flooring: Vacuum Dewatered Flooring (VDF) specifically designed for heavy industrial movement and loads.
Steel Structure Specs
- Primary Frame: Tapered built-up columns and rafters using High-Grade Steel (IS 2062/ASTM A572 Grade 350).
- Support System: Pre-Galvanized (120 GSM) cold-formed Z & C purlins for robust roof and wall support.
- Coating: 2 coats of Red Oxide Primer followed by 2 coats of Synthetic Enamel Paint (Grey/Blue).
Roofing & Cladding
- Sheeting: 0.47mm - 0.50mm TCT Galvalume profile sheets (Bare for roof, Colour Coated for walls).
- Ventilation: Includes Polycarbonate skylights (3-5% coverage) and 24-inch throat turbo ventilators.
- Drainage: Eave gutters and PVC down-take pipes included.
Insulated Prefabricated Site Offices
Framework & Flooring
- Structure: Heavy-duty hot-rolled steel grid designed to support Ground + 2 floors.
- Floor System: Metal decking sheet system topped with concrete screed or heavy-duty cement fiber board.
- Access: External steel staircases with chequered plate treads and mild steel railings.
Insulation & Walls
- Panel Specs: 50mm - 60mm PUF Sandwich Panels with 40kg/m3 density for high thermal and sound insulation.
- Material: 0.5mm Pre-painted Galvanized Iron (PPGI) skin.
- Roof: Corrugated PUF Sandwich panels designed for heat reflection.
Doors & Windows
- Openings: Aluminum powder-coated sliding windows and insulated flush doors.
- Safety: Fire-retardant foam core (B2/B3 grade) and water-resistant joinery.
PEB Structural Design & Engineering
Technical Drawings
- Fabrication: Detailed shop floor (GA) drawings covering every beam, column, and plate dimension.
- Foundation: Anchor bolt setting plans and reaction load reports to guide your on-site civil contractor.
Engineering Analysis
- Load Testing: Calculations for Dead, Live, Collateral, and Wind Loads (approx. 47 m/s) as per IS 875.
- Seismic Safety: Design compliance with IS 1893 based on the specific zone.
- Optimization: Value engineering to minimize steel tonnage without compromising structural integrity.
3D Modelling
- Visualization: BIM modelling (Tekla/Staad.Pro) to identify connections and prevent structural clashes before fabrication.
About Pre-Engineered Buildings
What Drives Me
For me, it’s never just about putting up walls and a roof. After 18 years in this field, I know what matters most is how quickly you can use your space, how long it lasts, and whether it’s built smart. My pre-engineered buildings are designed to help you move in fast, save money, and skip a lot of construction headaches.
Why My Pre-Engineered Buildings Work
- Most projects are up and running in a few weeks, not months or years. That’s a big deal when you need your steel warehouse construction or commercial space ready yesterday.
- I see cost as more than just material bills. Less time on site and fewer workers mean up to 30% savings for you.
- These aren’t flimsy sheds. I build with strong, earthquake-resistant steel structures, so you’re not worrying every time there’s a storm or tremor.
- Your building won’t look like every other shed on the block. I customize everything - size, layout, even the look, so it fits what you need, whether it’s a logistics hub or a modern showroom.
- I care about sustainability. Over 90% of the steel I use is recyclable, and with energy efficient prefab buildings, you save on power bills too.
My Process
From the first sketch to the last bolt, I handle it all. I start with 3D designs, then fabricate every piece in my workshop, and get my team to assemble it on your site. You’ll know who’s building your project at every step.
Where My Buildings Fit
Factories, warehouses, offices, logistics parks, community halls, even airport terminals – I’ve done it all. If it needs to be fast, strong, and made to last, that’s what I do.
Meet your Expert
Panjetani Buildwell
196 connects in last 3 months
My Story
We’re Panjetani Buildwell. Been at it for 18 years and counting. Didn’t start with fancy plans, just wanted to build smarter, waste less, and skip those endless delays. Now, 300+ projects later, we still show up before sunrise, treating every site like our own. ‘You Dream It, We Build It!’ isn’t just a tagline – it’s how we roll. Our crew’s like family – Vishwakarma Puja, work anniversaries, chai breaks, all of it. Jai Hind.
My Work
All-in-one Building Solutions - Civil construction, interior design, building design, fast PEB construction, PUF panels, LGSF, tensile structures, solar panel integration.
Pre-Engineered Buildings (PEB) - We design, make, and set up PEBs fast. Cost-effective, tough, and ready for anything – warehouses, showrooms, you name it.

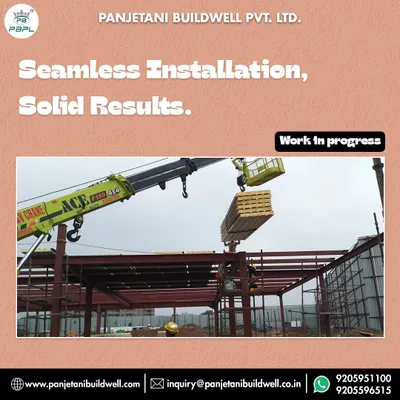

Insulated PUF Panels - PUF panels for roofing, cladding, cleanrooms, cold rooms. Energy-efficient and weatherproof – real difference you can feel.
Turnkey Civil Projects - From foundation to finish, we deliver on-time for industrial, commercial, and residential sites. No drama, just solid work.
3D Interior Visualization & Design - We shape spaces to match your style. Modern, classical, European – check the vibe in 3D before we build.
